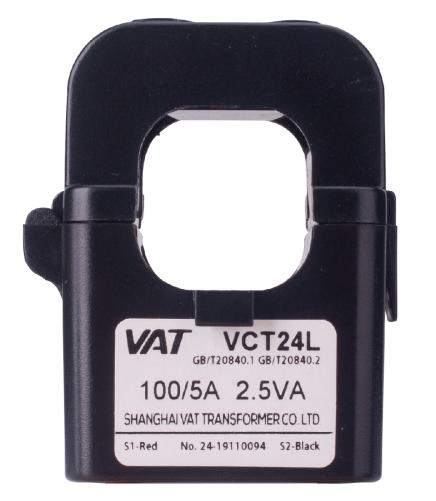

VCT-0.66 Split-Core Current Transformer

The VCT-0.66 split-core current transformer allows quick installation and removal without disconnecting existing cables, making it suitable for retrofit projects and monitoring systems. Technical Parameters Primary Current Range: 5–1500 A Secondary Current: 5 A Accuracy Class: 0.5 Rated Output: 2.5 / 5 VA Power Factor:…
High Quality
Complete Product Range
OEM/ODM Support
Fast Delivery
Global Export
Professional Service
Inquire Now
Current Transformers
Products

The VCT-0.66 split-core current transformer allows quick installation and removal without disconnecting existing cables, making it suitable for retrofit projects and monitoring systems.

Technical Parameters

  • Primary Current Range: 5–1500 A
  • Secondary Current: 5 A
  • Accuracy Class: 0.5
  • Rated Output: 2.5 / 5 VA
  • Power Factor: 0.8 lagging
  • Window Size: Ø10–Ø50 mm
  • Altitude: ≤1000 m
