JDZ(X)9-33 Indoor Voltage Transformer Series

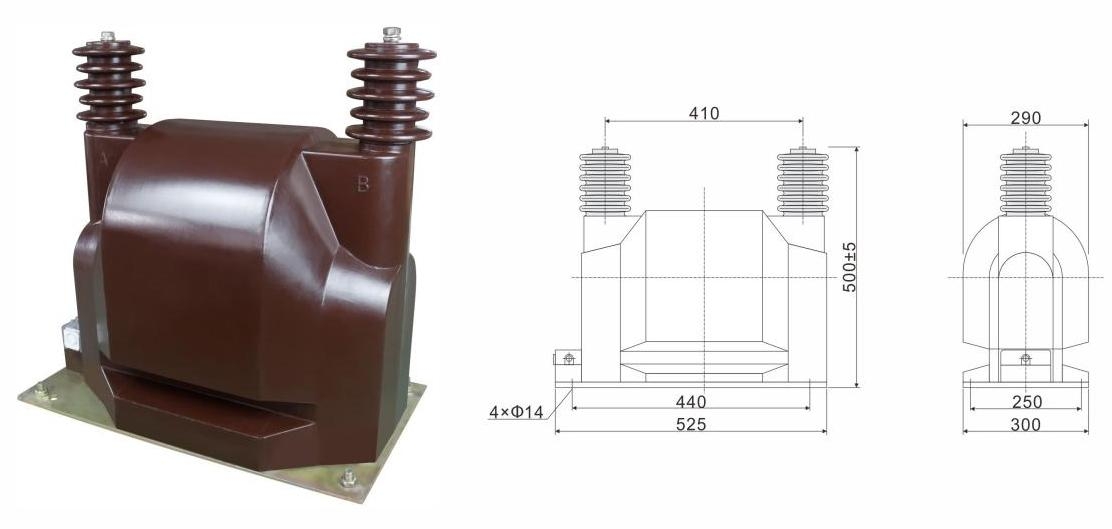

The JDZ9-35 is a fully enclosed epoxy-cast indoor voltage transformer designed for electrical measurement, voltage monitoring, and relay protection in 35kV power systems.

Technical Parameters

• Voltage Ratio: 35 / 0.1 kV
• Accuracy Class: 0.2 / 0.5
• Rated Output: 60 / 120 VA
• Maximum Output: 600 VA
• Insulation Level: 40.5 / 95 / 185 kV
• Installation: Indoor
• Altitude: ≤2000 m

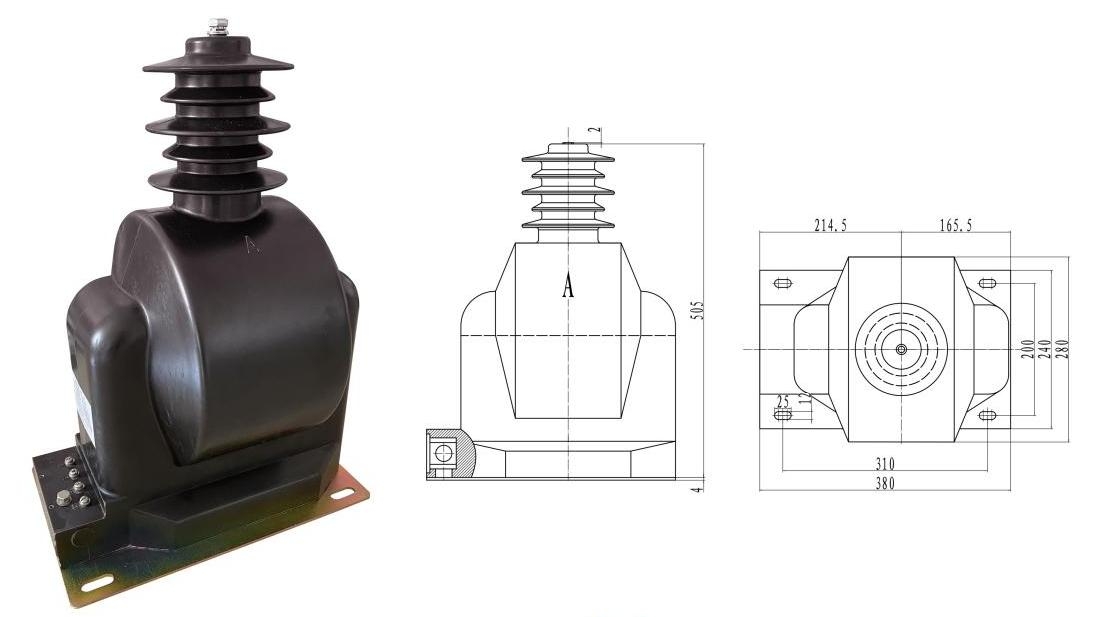

The JDZX9-35 is a 35kV indoor epoxy-cast voltage transformer with measurement and residual voltage windings for metering, monitoring, and relay protection.

Specifications

• Primary Voltage: 35/√3 kV
• Secondary Voltage: 0.1/√3 kV
• Residual Voltage: 0.1/3 kV
• Accuracy: 0.2 / 0.5 / 6P
• Rated Output: 30 / 50 / 100 VA
• Maximum Output: 500 VA
• Insulation Level: 40.5 / 95 / 185 kV
• Installation: Indoor
