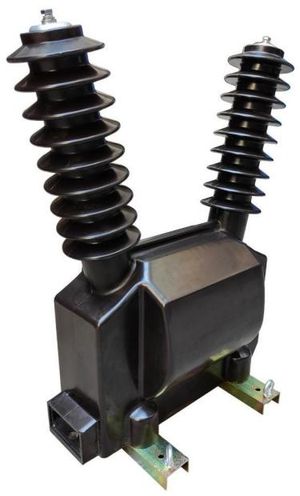

JDZ(X)W-33 Outdoor Voltage Transformer Series

The JDZW-35 is an outdoor epoxy-resin voltage transformer designed for energy metering, voltage monitoring, and relay protection in high-voltage power systems.

Technical Parameters

• Voltage Ratio: 35 / 0.11 kV
• Accuracy Class: 0.2 / 0.5
• Rated Output: 60 / 120 VA
• Maximum Output: 600 VA
• Insulation Level: 40.5 / 95 / 185 kV
• Installation: Outdoor
• Frequency: 50/60 Hz
• Altitude: ≤1000 m

The JDZXW-35 is an outdoor epoxy-cast voltage transformer with measurement and residual voltage windings for metering, monitoring, and protection applications.

Specifications

• Primary Voltage: 35/√3 kV
• Secondary Voltage: 0.1/√3 kV
• Residual Voltage: 0.1/3 kV
• Accuracy Class: 0.2 / 0.5 / 6P
• Rated Output: 30 / 50 / 100 VA
• Maximum Output: 500 VA
• Insulation Level: 40.5 / 95 / 185 kV
