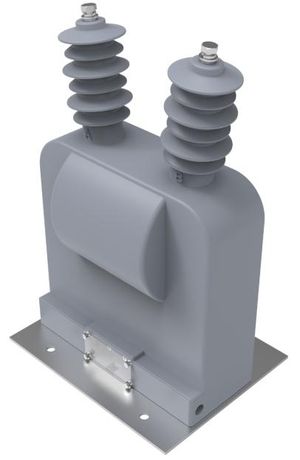

JDZW-11 11kV Outdoor Voltage Transformer

The JDZW-11 is a compact outdoor epoxy-cast voltage transformer for energy metering, voltage monitoring, and relay protection in 11kV power systems. Technical Parameters Rated Primary Voltage: 11 kV Rated Secondary Voltage: 0.11 kV Accuracy Class: 0.2 / 0.5 Rated Output: 30 / 50 VA Maximum…
High Quality
Complete Product Range
OEM/ODM Support
Fast Delivery
Global Export
Professional Service
Inquire Now
Products
Voltage Transformers

The JDZW-11 is a compact outdoor epoxy-cast voltage transformer for energy metering, voltage monitoring, and relay protection in 11kV power systems.

Technical Parameters

  • Rated Primary Voltage: 11 kV
  • Rated Secondary Voltage: 0.11 kV
  • Accuracy Class: 0.2 / 0.5
  • Rated Output: 30 / 50 VA
  • Maximum Output: 400 VA
  • Insulation Level: 12 / 42 / 75 kV
  • Installation: Outdoor
  • Frequency: 50/60 Hz
  • Altitude: ≤1000 m
  • Pollution Level: Class II
