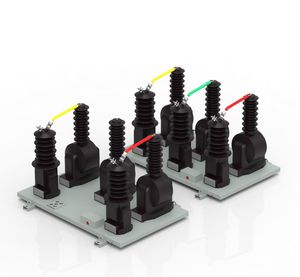

JLSZ□-35 35kV Outdoor Combined Metering Unit

The JLSZ□-35 is a three-phase outdoor combined metering unit integrating current and voltage transformers for accurate active and reactive energy metering in 35kV power systems. Technical Details Technical Parameters Parameter Value Model JLSZ□-35 Rated Primary Voltage 35 kV Rated Frequency 50 Hz Rated Voltage Ratio…
High Quality
Complete Product Range
OEM/ODM Support
Fast Delivery
Global Export
Professional Service
Inquire Now
Combined Instrument Transformers
Products

The JLSZ□-35 is a three-phase outdoor combined metering unit integrating current and Voltage Transformers for accurate active and reactive energy metering in 35kV power systems.

Technical Details

  • 35kV System
  • CT & VT Integrated
  • 0.2S / 0.5S Accuracy
  • Outdoor Dry-Cast
  • Wide Current Range
  • Flexible Metering



Technical Parameters

ParameterValue
ModelJLSZ□-35
Rated Primary Voltage35 kV
Rated Frequency50 Hz
Rated Voltage Ratio35000 / 100 V
Rated Primary Current2.5–100 A, stepped
Rated Secondary Current5 A or 1 A
Accuracy Class0.2 / 0.5 / 0.2S / 0.5S
Dual-Ratio CT TapsS1-S2 low ratio / S1-S3 high ratio
InstallationOutdoor
