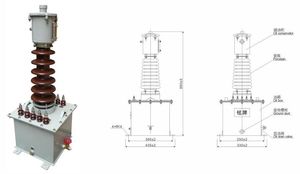

JDJJ2-33 33kV Outdoor Voltage Transformer

The JDJJ2-33 is a 33kV single-phase oil-immersed voltage transformer with an additional residual voltage winding for measurement and protection applications. Technical Parameters Rated Primary Voltage: 33/√3 kV Rated Secondary Voltage: 0.11/√3 kV Residual Winding Voltage: 0.11/3 kV Accuracy Class: 0.2 / 0.5 / 1 /…
High Quality
Complete Product Range
OEM/ODM Support
Fast Delivery
Global Export
Professional Service
Inquire Now
Products
Voltage Transformers

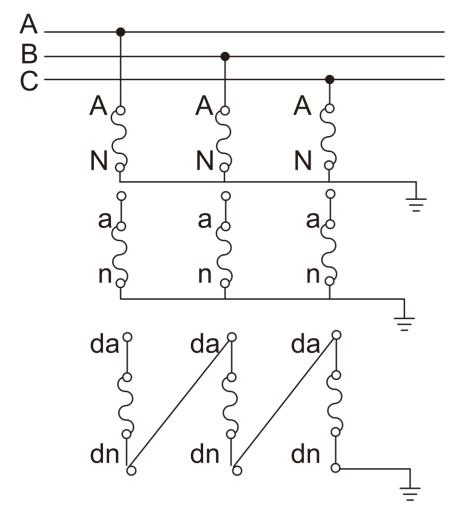

The JDJJ2-33 is a 33kV single-phase oil-immersed voltage transformer with an additional residual voltage winding for measurement and protection applications.

Technical Parameters

  • Rated Primary Voltage: 33/√3 kV
  • Rated Secondary Voltage: 0.11/√3 kV
  • Residual Winding Voltage: 0.11/3 kV
  • Accuracy Class: 0.2 / 0.5 / 1 / 6P
  • Rated Output: 60 / 150 / 250 / 500 VA
  • Maximum Output: 1000 VA
  • Insulation Level: 40.5 / 95 / 200 kV
  • Installation: Outdoor
  • Frequency: 50 Hz
  • Altitude: ≤2000 m
