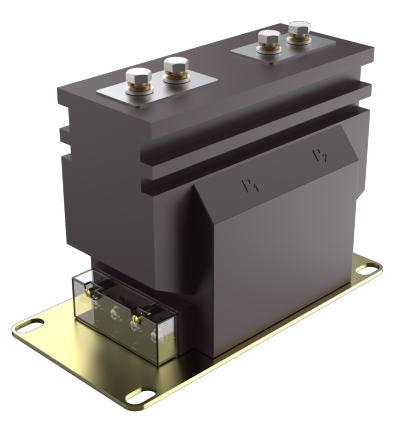

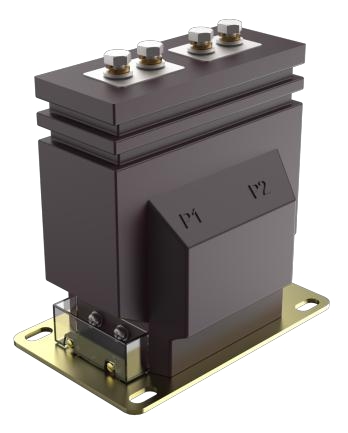

LZZBJ9-11 11kV Indoor Current Transformer

The LZZBJ9-11 is a fully enclosed epoxy-cast current transformer for 11kV indoor systems, offering reliable metering and protection with high insulation performance and low partial discharge. Technical Parameters Rated Primary Current: 50–600 A Rated Secondary Current: 5 A / 1 A Accuracy: 0.2S / 0.5…
High Quality
Complete Product Range
OEM/ODM Support
Fast Delivery
Global Export
Professional Service
Inquire Now
Current Transformers
Products

The LZZBJ9-11 is a fully enclosed epoxy-cast current transformer for 11kV indoor systems, offering reliable metering and protection with high insulation performance and low partial discharge.



Technical Parameters

  • Rated Primary Current: 50–600 A
  • Rated Secondary Current: 5 A / 1 A
  • Accuracy: 0.2S / 0.5 / 10P10
  • Rated Output: 10 / 15 VA
  • Insulation Level: 12 / 42 / 75 kV
  • Creepage Distance: 25 mm/kV
  • Installation: Indoor
  • Altitude: ≤3000 m
