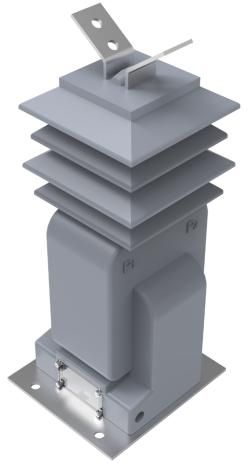

LZZW-11 11kV Outdoor Current Transformer

The LZZW-11 is an outdoor epoxy-cast current transformer for 11kV systems, designed for energy metering, current measurement, and relay protection. Technical Parameters Rated Primary Current: 50–600 A Rated Secondary Current: 5 A / 1 A Accuracy: 0.2S / 0.5 / 10P10 Rated Output: 10 /…
High Quality
Complete Product Range
OEM/ODM Support
Fast Delivery
Global Export
Professional Service
Inquire Now
Current Transformers
Products

The LZZW-11 is an outdoor epoxy-cast current transformer for 11kV systems, designed for energy metering, current measurement, and relay protection.

Technical Parameters

  • Rated Primary Current: 50–600 A
  • Rated Secondary Current: 5 A / 1 A
  • Accuracy: 0.2S / 0.5 / 10P10
  • Rated Output: 10 / 15 VA
  • Insulation Level: 12 / 42 / 75 kV
  • Installation: Outdoor
  • Altitude: ≤1000 m
