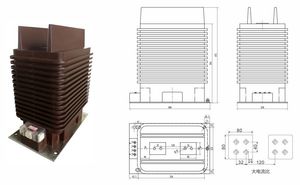

LZZBJ9-33 35kV Indoor Current Transformer

The LZZBJ9-33 is a 35kV indoor epoxy-cast current transformer for current measurement, energy metering, monitoring, and relay protection in high-voltage power systems. Technical Parameters Rated Primary Current: 50–1200 A Rated Secondary Current: 5 A / 1 A Rated Voltage: 35 kV Accuracy Classes: 0.2S /…
High Quality
Complete Product Range
OEM/ODM Support
Fast Delivery
Global Export
Professional Service
Inquire Now
Current Transformers
Products

The LZZBJ9-33 is a 35kV indoor epoxy-cast current transformer for current measurement, energy metering, monitoring, and relay protection in high-voltage power systems.

Technical Parameters

  • Rated Primary Current: 50–1200 A
  • Rated Secondary Current: 5 A / 1 A
  • Rated Voltage: 35 kV
  • Accuracy Classes: 0.2S / 0.5 / 10P10
  • Rated Output: 15 / 20 VA
  • Insulation Level: 40.5 / 95 / 185 kV
  • Installation: Indoor
  • Altitude: ≤2000 m
