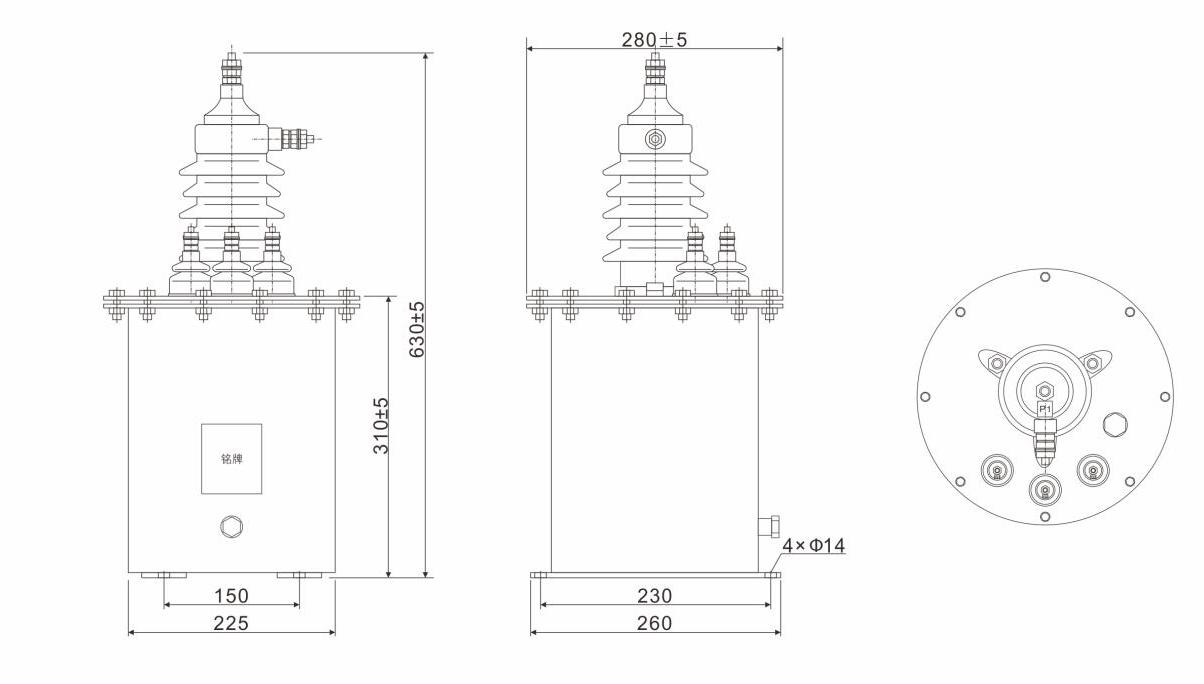

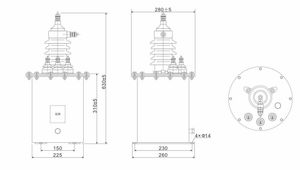

LB-10 Oil-Immersed Current Transformer

The LB-10 is a 10kV oil-immersed current transformer designed for indoor and outdoor current and energy measurement in 50/60Hz power systems. It features 0.2S metering accuracy and reliable oil insulation. Specifications Rated Primary Current: 10–20 A Rated Secondary Current: 5 A Rated Voltage: 10 kV…
High Quality
Complete Product Range
OEM/ODM Support
Fast Delivery
Global Export
Professional Service
Inquire Now
Current Transformers
Products

The LB-10 is a 10kV oil-immersed current transformer designed for indoor and outdoor current and energy measurement in 50/60Hz power systems. It features 0.2S metering accuracy and reliable oil insulation.

Specifications

  • Rated Primary Current: 10–20 A
  • Rated Secondary Current: 5 A
  • Rated Voltage: 10 kV
  • Accuracy Class: 0.2S
  • Rated Output: 15 VA
  • Rated Short-Time Thermal Current: 1 kA
  • Rated Dynamic Current: 2.5 kA
  • Frequency: 50/60 Hz
  • Installation: Indoor / Outdoor
  • Standard: IEC 61869-2 / GB/T 20840.2
