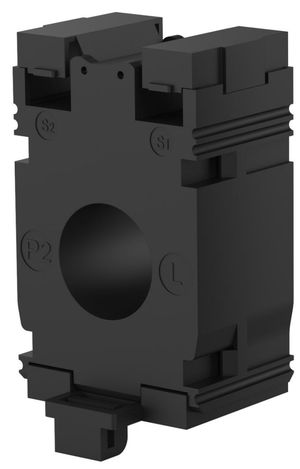

AF Series Mini DIN-Rail Current Transformer

The AF Series is a compact low-voltage current transformer for current measurement, energy metering, and relay protection, designed for DIN-rail or busbar mounting. Technical Parameters Models: AF-20 / AF-30 Rated Voltage: ≤0.72 kV Current Ratio: 15/5–300/5 A Accuracy Class: 1.0 Rated Secondary Current: 5 A…
High Quality
Complete Product Range
OEM/ODM Support
Fast Delivery
Global Export
Professional Service
Inquire Now
Current Transformers
Products

The AF Series is a compact low-voltage current transformer for current measurement, energy metering, and relay protection, designed for DIN-rail or busbar mounting.

Technical Parameters

  • Models: AF-20 / AF-30
  • Rated Voltage: ≤0.72 kV
  • Current Ratio: 15/5–300/5 A
  • Accuracy Class: 1.0
  • Rated Secondary Current: 5 A / 1 A
  • Frequency: 50/60 Hz
  • Housing: UL94-V0 Flame-Retardant ABS
  • Installation: Indoor
