BH-0.66 Low-Voltage Current Transformer

The BH-0.66 is a molded-case low-voltage current transformer for current measurement and energy metering, with multiple window sizes and flexible busbar or base mounting. BH-0.66-20I BH-0.66-30I BH-0.66-40I BH-0.66-50I BH-0.66-60I BH-0.66-80I BH-0.66-100I BH-0.66-30II 30×30 BH-0.66-40II 40×30 BH-0.66-50II 50×30 BH-0.66-60II 60×30 BH-0.66-80II 80×30 BH-0.66-100II 100×30 BH-0.66-50III 50×50…
High Quality
Complete Product Range
OEM/ODM Support
Fast Delivery
Global Export
Professional Service
Inquire Now
Current Transformers
Products

The BH-0.66 is a molded-case low-voltage current transformer for current measurement and energy metering, with multiple window sizes and flexible busbar or base mounting.

Technical Parameters

  • Rated Primary Current: 5–5000 A
  • Rated Secondary Current: 5 A / 1 A
  • Accuracy: 0.2 / 0.5 / 1 / 3 / 0.2S / 0.5S
  • Rated Output: 2.5 / 5 / 10 / 20 / 30 VA
  • Maximum Equipment Voltage: 0.72 kV
  • Frequency: 50 Hz

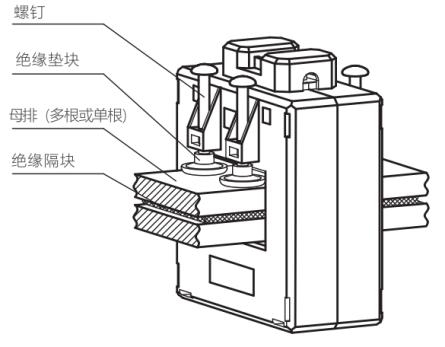

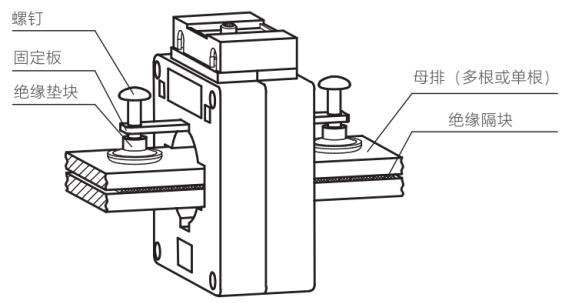

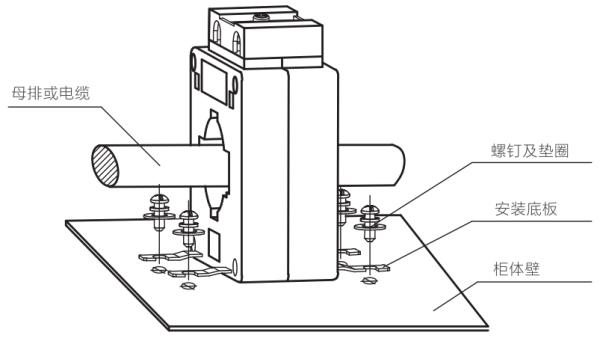

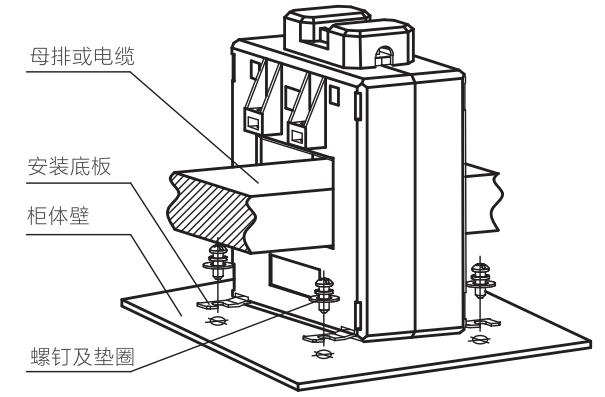

  • Installation: Busbar / Base Mounting
  • Environment: Indoor
Outline drawing and installation dimensions (unit: mm)

BH-0.66-20I

BH-0.66-30I

BH-0.66-40I

BH-0.66-50I

BH-0.66-60I

BH-0.66-80I

BH-0.66-100I

BH-0.66-30II   30×30

BH-0.66-40II   40×30

BH-0.66-50II   50×30

BH-0.66-60II   60×30

BH-0.66-80II   80×30

BH-0.66-100II   100×30

BH-0.66-50III   50×50

BH-0.66-60III   60×50



BH-0.66-80III   80×50

BH-0.66-100III   100×50

Note: Only diagrams for some common specifications and dimensions are provided above. Please contact us if you require other specifications.
