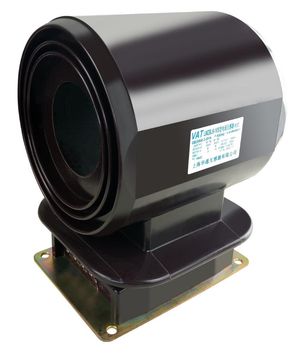

The LMZBJ9-10S is a fully enclosed epoxy-cast current transformer for 10kV indoor power systems, designed for current measurement, energy metering, and relay protection.

Technical Parameters

  • Rated Primary Current: 600/5–2500/5 A
  • Rated Secondary Current: 5 A / 1 A
  • Rated Voltage: ≤10 kV
  • Accuracy Combinations: 0.2S/10P / 0.2/10P / 0.5/10P
  • Insulation Level: 12 / 42 / 75 kV
  • Installation: Indoor
  • Altitude: ≤1500 m
  • Relative Humidity: ≤90%
