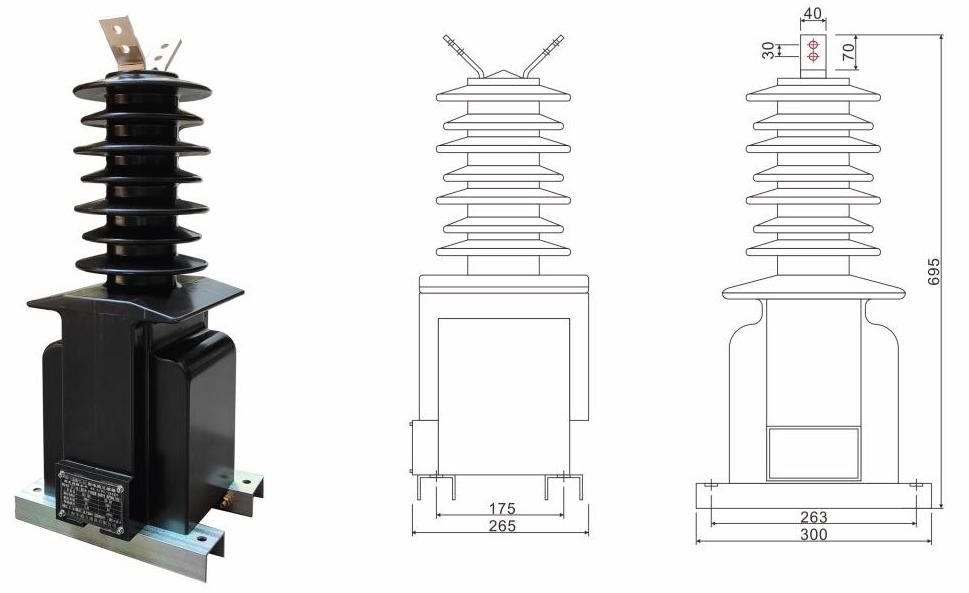

LZZW-33 35kV Outdoor Current Transformer

The LZZW-33 is a 35kV outdoor epoxy-cast current transformer for energy metering, current measurement, and relay protection, with up to three secondary windings. Technical Parameters Rated Primary Current: 50–600 A Rated Secondary Current: 5 A / 1 A Rated Voltage: 35 kV Accuracy Classes: 0.2S…
High Quality
Complete Product Range
OEM/ODM Support
Fast Delivery
Global Export
Professional Service
Inquire Now
Current Transformers
Products

The LZZW-33 is a 35kV outdoor epoxy-cast current transformer for energy metering, current measurement, and relay protection, with up to three secondary windings.

Technical Parameters

  • Rated Primary Current: 50–600 A
  • Rated Secondary Current: 5 A / 1 A
  • Rated Voltage: 35 kV
  • Accuracy Classes: 0.2S / 0.5 / 10P10
  • Rated Output: 15 / 20 / 30 VA
  • Insulation Level: 40.5 / 95 / 185 kV
  • Installation: Outdoor
  • Frequency: 50/60 Hz
