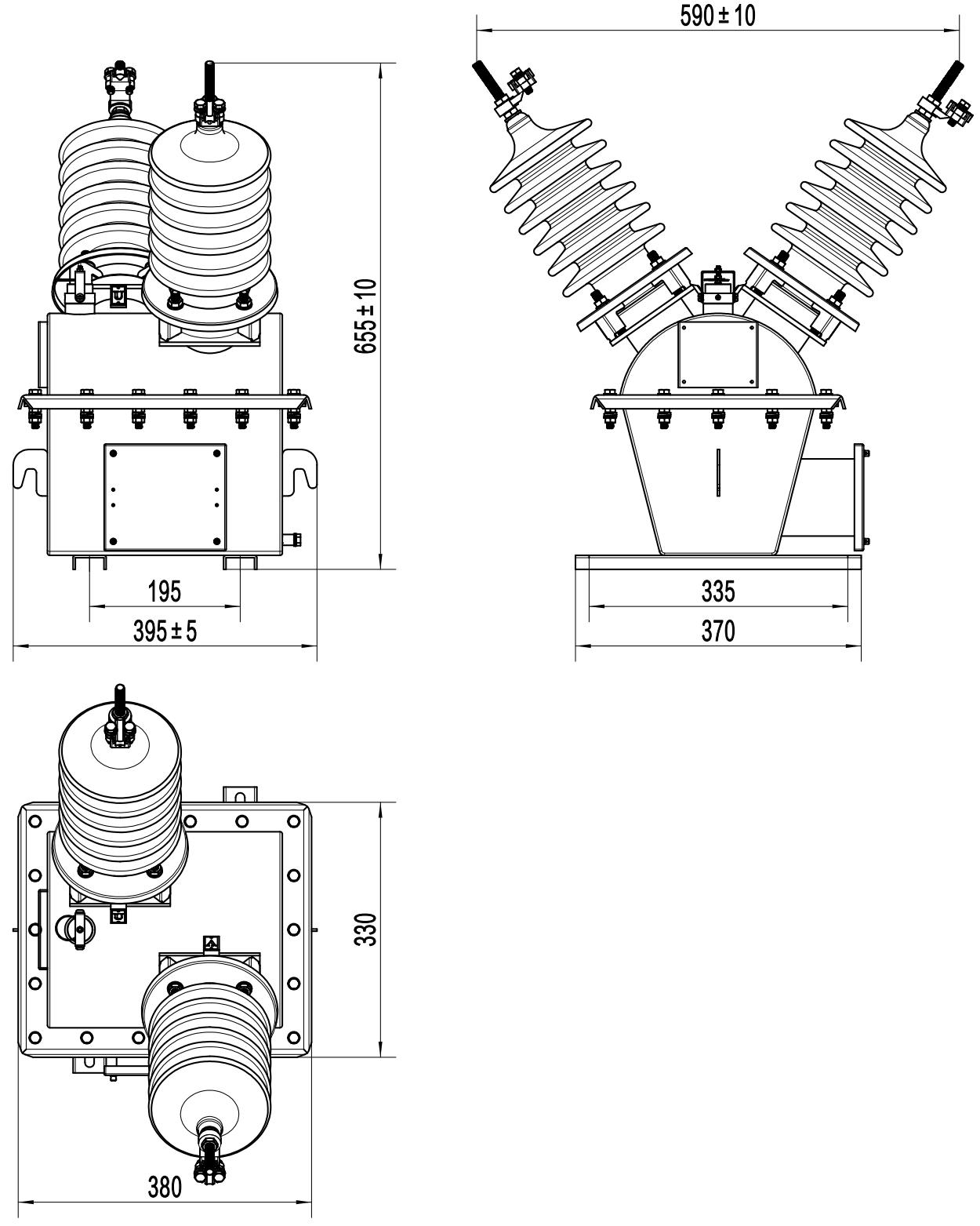

产品主图 产品图1

VOL-24 24kV Outdoor Voltage Transformer

The VOL-24 is a 24kV oil-immersed outdoor voltage transformer designed for electrical measurement and relay protection in 50/60Hz power systems. Specifications Rated Primary Voltage: 22,000 V Rated Secondary Voltage: 110 V System Voltage: 24 kV Accuracy Class: 0.5 / 1 / 3 Rated Output: 50…
High Quality
Complete Product Range
OEM/ODM Support
Fast Delivery
Global Export
Professional Service
Inquire Now
Products
Voltage Transformers

The VOL-24 is a 24kV oil-immersed outdoor voltage transformer designed for electrical measurement and relay protection in 50/60Hz power systems.

Specifications

  • Rated Primary Voltage: 22,000 V
  • Rated Secondary Voltage: 110 V
  • System Voltage: 24 kV
  • Accuracy Class: 0.5 / 1 / 3
  • Rated Output: 50 / 80 / 200 VA
  • Maximum Output: 500 VA
  • Insulation Level: 24 / 50 / 125 kV
  • Frequency: 50/60 Hz
  • Installation: Outdoor
  • Ambient Temperature: -25°C to +40°C
  • Altitude: ≤2000 m
  • Wind Speed: <34 m/s
  • Standard: IEC 61869-3 / GB/T 20840.3
