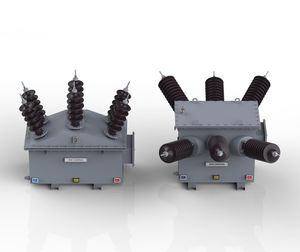

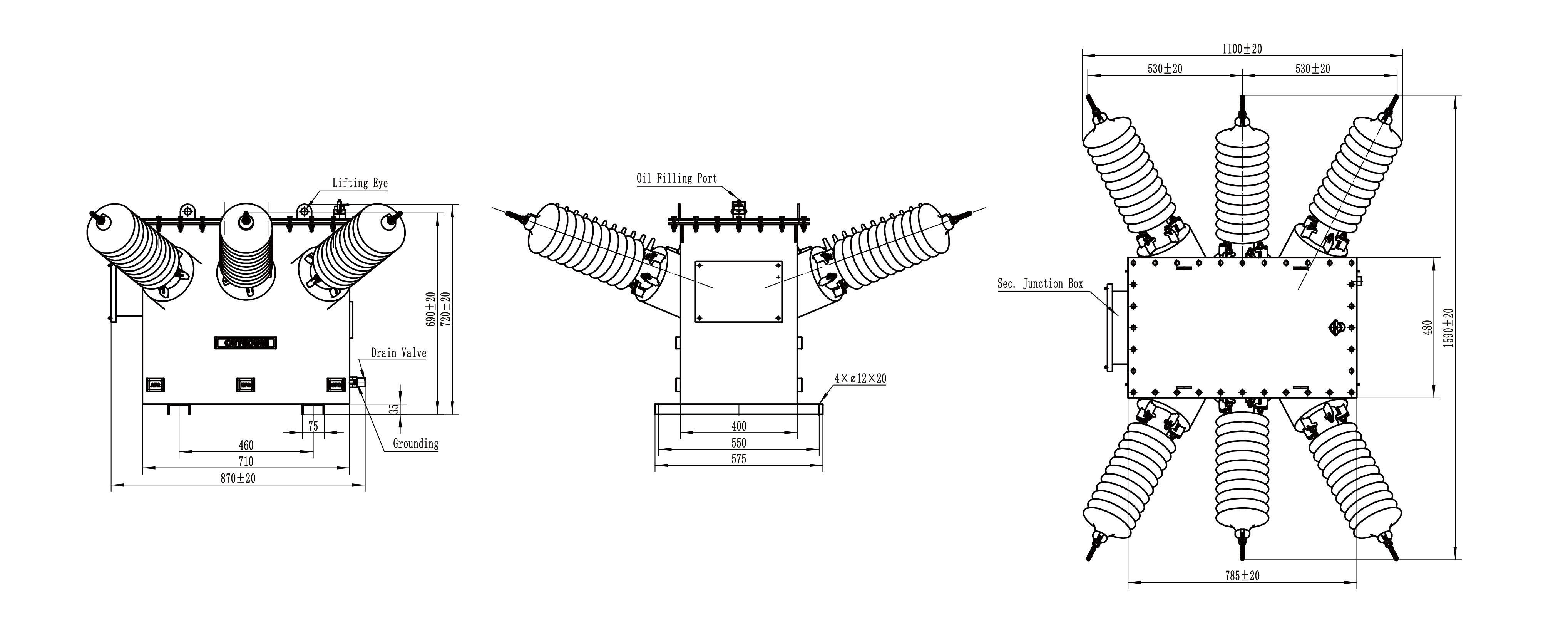

35kV Three-Phase Outdoor Metering Unit

The 35kV three-phase outdoor metering unit integrates Current Transformers and Voltage Transformers in one oil-immersed enclosure for accurate active and reactive energy metering on high-voltage power systems.

Main Parameters

• Product Type: C.T. / V.T. Metering Unit
• Rated Primary Voltage: 35 kV
• Rated Frequency: 50 Hz
• Rated Voltage Ratio: 33000 / 110 V
• Rated Primary Current: 2.5–100 A
• Rated Secondary Current: 5 A or 1 A
• Accuracy Class: 0.2 / 0.5 / 0.2S / 0.5S
• Voltage Core Rated Output: 3 × 50 VA
• Current Core Rated Output: 3 × 50 VA
• Connection: Y/Y0
• Structure: Three-Phase, Three-Element
• Insulation Type: Oil-Immersed
• Installation: Outdoor
