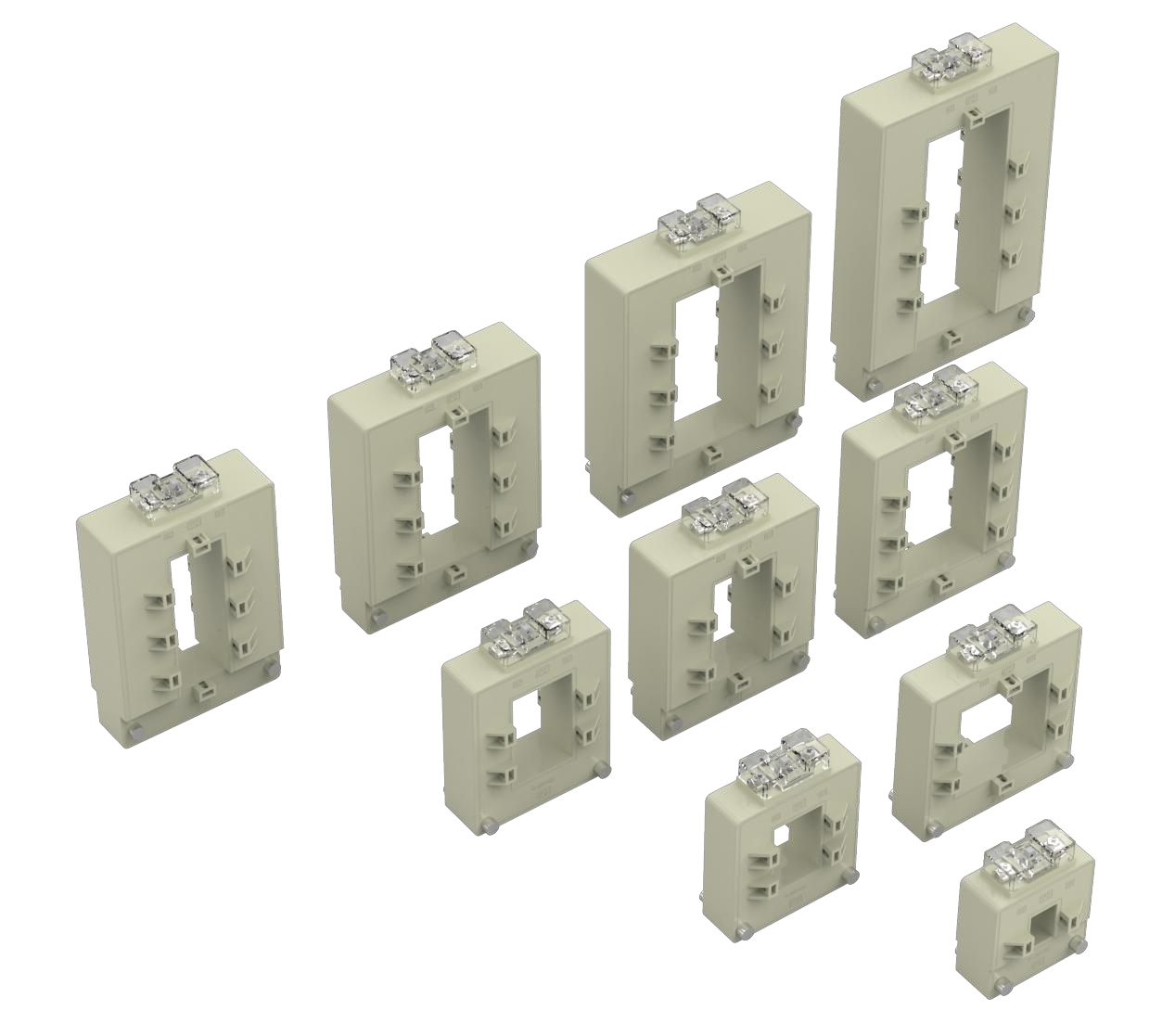

The VKH-0.66 is a split-core current transformer for low-voltage energy measurement and relay protection, offering large window sizes and high-current configurations. VKH-0.66-23 VKH-0.66-46 VKH-0.66-58 VKH-0.66-88 VKH-0.66-510 VKH-0.66-614 VKH-0.66-812 VKH-0.66-816 VKH-0.66-820 2000/5-8000/5 80×200
Read More
The VCT-0.66 split-core current transformer allows quick installation and removal without disconnecting existing cables, making it suitable for retrofit projects and monitoring systems. Technical Parameters Primary Current Range: 5–1500 A Secondary Current: 5 A Accuracy Class: 0.5 Rated Output: 2.5 / 5 VA Power Factor:…
Read More
The LZZBJ9-11 is a fully enclosed epoxy-cast current transformer for 11kV indoor systems, offering reliable metering and protection with high insulation performance and low partial discharge. Technical Parameters Rated Primary Current: 50–600 A Rated Secondary Current: 5 A / 1 A Accuracy: 0.2S / 0.5…
Read More

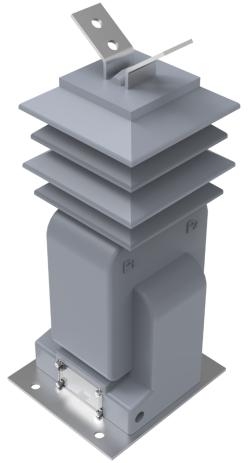

The LZZW-11 is an outdoor epoxy-cast current transformer for 11kV systems, designed for energy metering, current measurement, and relay protection. Technical Parameters Rated Primary Current: 50–600 A Rated Secondary Current: 5 A / 1 A Accuracy: 0.2S / 0.5 / 10P10 Rated Output: 10 /…
Read More
The LZZBJ9-33 is a 35kV indoor epoxy-cast current transformer for current measurement, energy metering, monitoring, and relay protection in high-voltage power systems. Technical Parameters Rated Primary Current: 50–1200 A Rated Secondary Current: 5 A / 1 A Rated Voltage: 35 kV Accuracy Classes: 0.2S /…
Read More

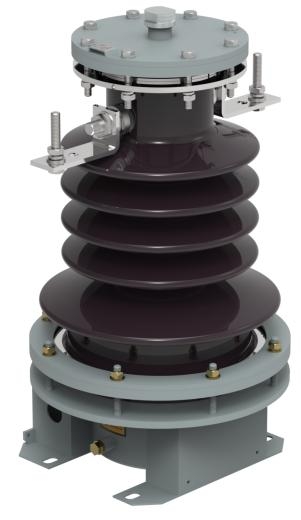

The COL-24 is a 24kV oil-immersed current transformer for current and energy measurement in indoor and outdoor power systems. It offers 0.2S and 0.5 accuracy classes with reliable outdoor insulation. Main Parameters Rated Primary Current: 10 / 15 / 20 / 25 / 30 /…
Read More
The LB-10 is a 10kV oil-immersed current transformer designed for indoor and outdoor current and energy measurement in 50/60Hz power systems. It features 0.2S metering accuracy and reliable oil insulation. Specifications Rated Primary Current: 10–20 A Rated Secondary Current: 5 A Rated Voltage: 10 kV…
Read More

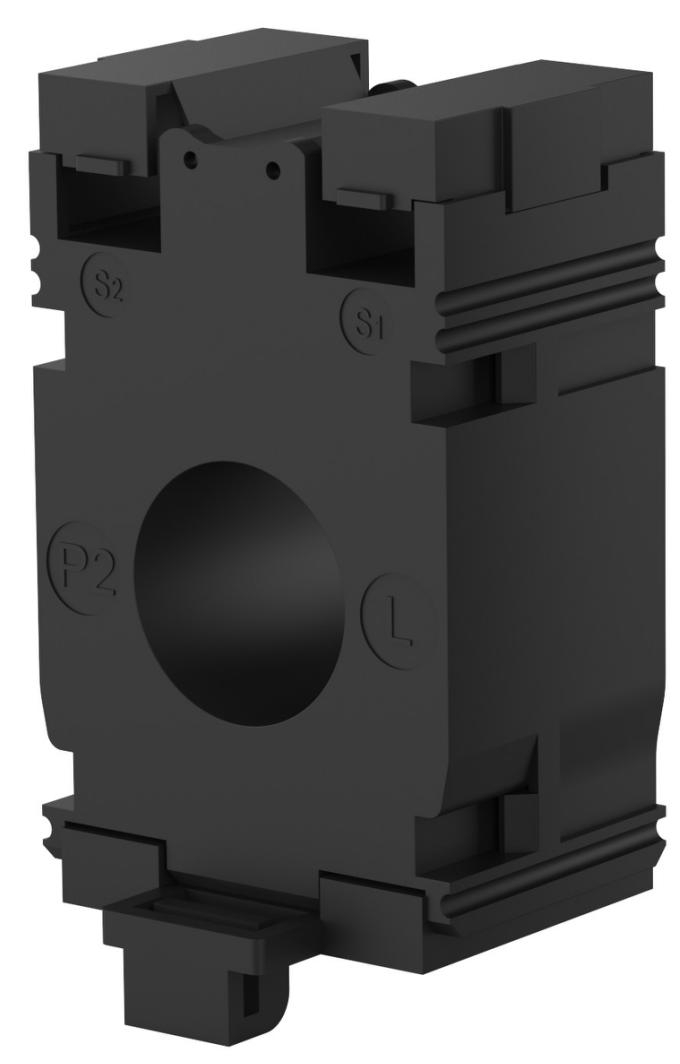

The AF Series is a compact low-voltage current transformer for current measurement, energy metering, and relay protection, designed for DIN-rail or busbar mounting. Technical Parameters Models: AF-20 / AF-30 Rated Voltage: ≤0.72 kV Current Ratio: 15/5–300/5 A Accuracy Class: 1.0 Rated Secondary Current: 5 A…
Read More

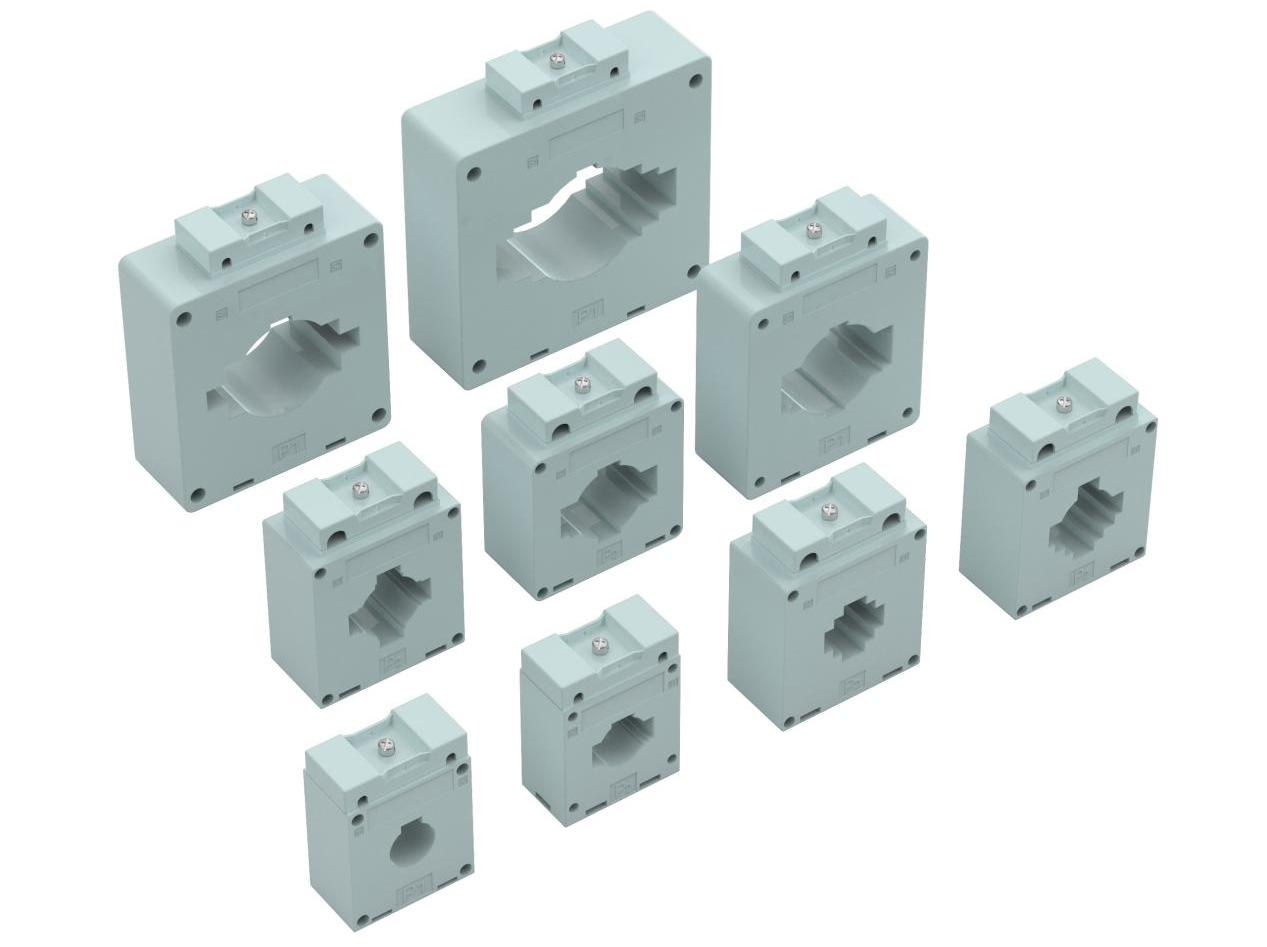

The BH-0.66 is a molded-case low-voltage current transformer for current measurement and energy metering, with multiple window sizes and flexible busbar or base mounting. BH-0.66-20I BH-0.66-30I BH-0.66-40I BH-0.66-50I BH-0.66-60I BH-0.66-80I BH-0.66-100I BH-0.66-30II 30×30 BH-0.66-40II 40×30 BH-0.66-50II 50×30 BH-0.66-60II 60×30 BH-0.66-80II 80×30 BH-0.66-100II 100×30 BH-0.66-50III 50×50…
Read More
The LZZW-33 is a 35kV outdoor epoxy-cast current transformer for energy metering, current measurement, and relay protection, with up to three secondary windings. Technical Parameters Rated Primary Current: 50–600 A Rated Secondary Current: 5 A / 1 A Rated Voltage: 35 kV Accuracy Classes: 0.2S…
Read More

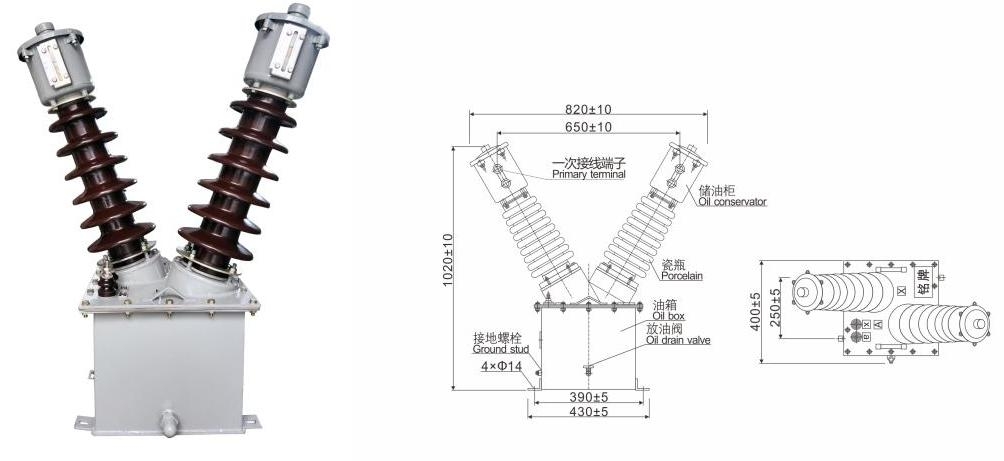

The JDJ2-33 is a single-phase, oil-immersed outdoor voltage transformer designed for electrical measurement and relay protection in 33kV power systems. Specifications Rated Primary Voltage: 33 kV Rated Secondary Voltage: 0.11 kV Accuracy Class: 0.5 / 1 / 3 Rated Output: 150 / 250 / 500…
Read More
The 35kV three-phase outdoor metering unit integrates current transformers and voltage transformers in one oil-immersed enclosure for accurate active and reactive energy metering on high-voltage power systems. Main Parameters Product Type: C.T. / V.T. Metering Unit Rated Primary Voltage: 35 kV Rated Frequency: 50 Hz…
Read More

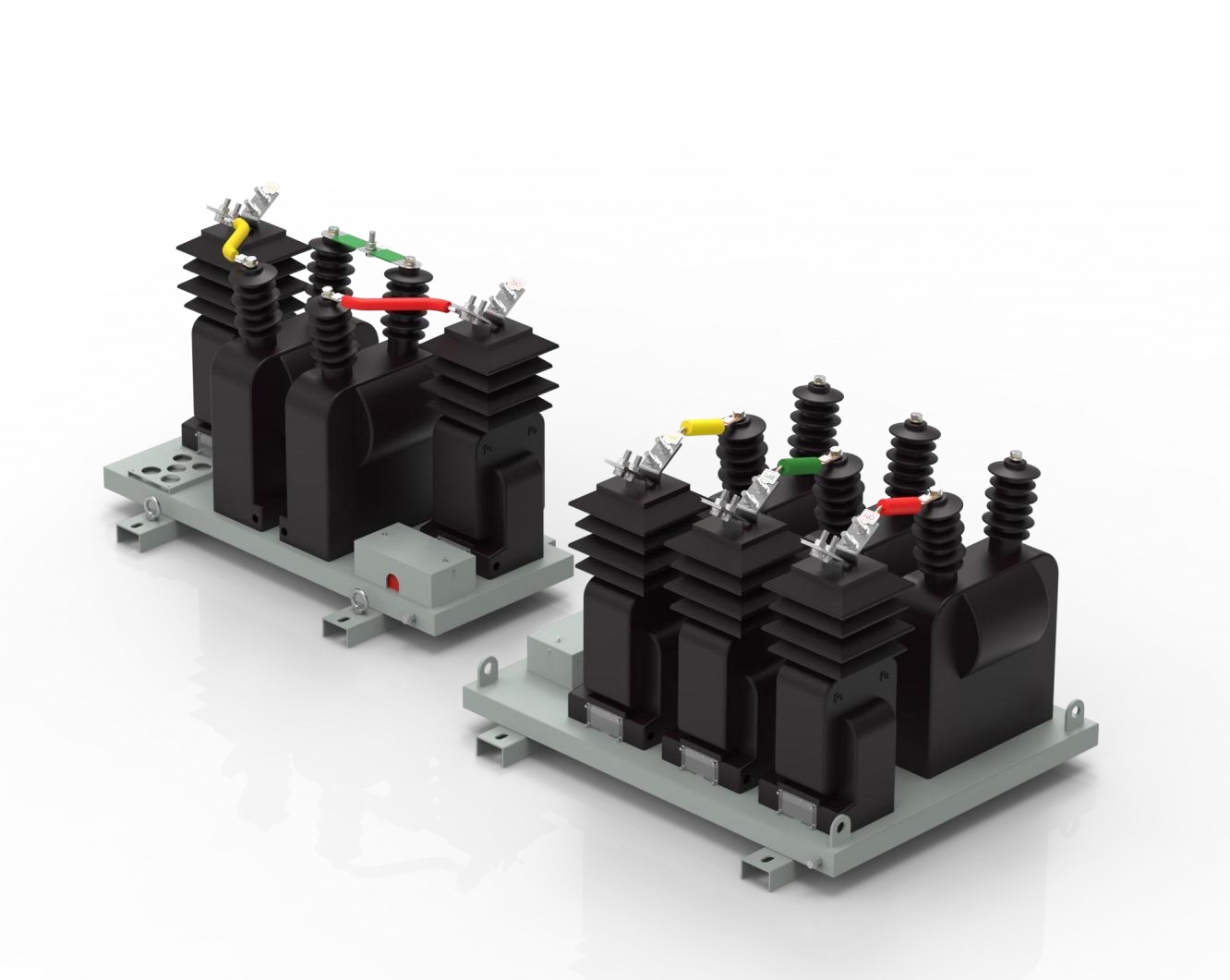

The JLSZ□-10 is a three-phase outdoor combined metering unit integrating current and voltage transformers for direct active and reactive energy metering in 10kV power systems. Technical Details Technical Parameters Parameter Value Model JLSZ□-10 Rated Primary Voltage 10 kV Rated Frequency 50 Hz Rated Voltage Ratio…
